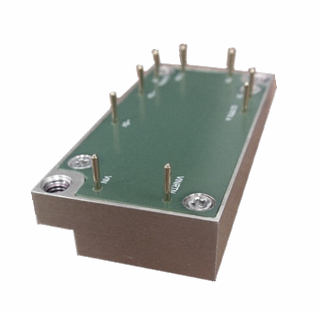

M110D |
110W |
24-72VDC |
1) 28V, 2) 12V |
1) 3A, 2) 2A |
2 |
83.22mm X 50.8mm X 10mm
3.2764in X 2in X 0.3937in | |
 |

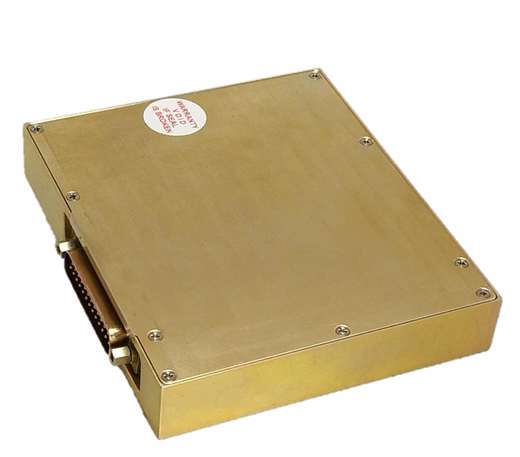

M130TP |
130W |
16-32VDC |
1) 5.1V, 2) 15V, 3) -15V |
1) 8A, 2) 3A, 3) 3A |
3 |
120mm X 103.1mm X 20.5mm
4.7244in X 4.0591in X 0.8071in | |
 |

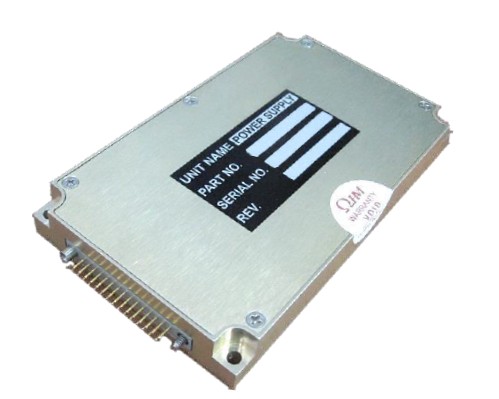

M200DP |
200W |
18-48VDC |
1) 28V, 2) 5V |
1) 5.8A, 2) 4A |
2 |
106.7mm X 63.5mm X 12.7mm
4.2008in X 2.5in X 0.5in | |
 |
M200SP |
200W |
18-48VDC |
28V |
7A |
1 |
106.7mm X 63.5mm X 12.7mm
4.2008in X 2.5in X 0.5in | |
|
|
M200SP48 |
250W |
18-48VDC |
1) 48V |
1) 4.2A |
1 |
106.7mm X 63.5mm X 12.7mm
4.2008in X 2.5in X 0.5in | |
 |
M300FN |
173W |
18-48VDC |
1) 3.3V, 2) 5V, 3) -5V, 4) 9V, 5) -3.1V |
1) 7.1A, 2) 4.3A, 3) 1.5A, 4) 13A, 5) 1.2A |
5 |
140mm X 15.5mm X 82.5mm
5.5118in X 0.6102in X 3.248in | |
 |
M400QD |
410W |
200-350VDC |
1) 3.4V, 2) 5.2V, 3) 12.1V, 4) 5.1V |
1) 45A, 2) 8A, 3) 3A, 4) 35A |
4 |
115mm X 90mm X 15.5mm
4.5276in X 3.5433in X 0.6102in | |
 |
M450FN |
493W |
16-33VDC |
1) 3.3V, 2) 5V, 3) 5V, 4) 6V, 5) 28V |
1) 7.5A, 2) 4.5A, 3) 3A, 4) 2A, 5) 15V |
5 |
168mm X 16mm X 116.8mm
6.6142in X 0.6299in X 4.5984in | |
 |

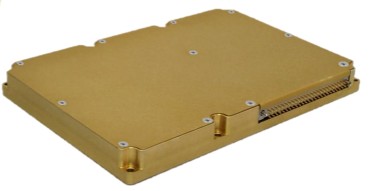

M500SP-1 |
504W |
16-33VDC |
28V |
18A |
1 |
168mm X 16mm X 116.8mm
6.6142in X 0.6299in X 4.5984in | |
 |
M55D-3-1 |
75W |
16-33VDC |
1) 3.3V, 2) 5V, 3) -5V |
1) 5A / 10A, 2) 10A / 6.5A, 3) 1A / 2.5A |
3 |
168.52mm X 100mm X 24.62mm
6.6346in X 3.937in X 0.9693in | |
 |
M60-QP/QPRF/QPRF-1 |
60W |
18-36VDC |
1) 5V, 2) 3.3V, 3) 15V, 4) -15V |
1) 1.25A / 2A, 2) 3A / 1A, 3) 0.75A, 4) 0.75A |
4 |
79mm X 55mm X 12.7mm
3.1102in X 2.1654in X 0.5in | |
 |
M70FN |
78W |
16-33VDC |
1) 3.3V, 2) 5.3V, 3) -5V, 4) 6V, 5) -3.1V |
1) 7.1A, 2) 4.3A, 3) 3A, 4) 2A, 5) 1.2A |
5 |
140mm X 15.5mm X 82.5mm
5.5118in X 0.6102in X 3.248in | |
 |

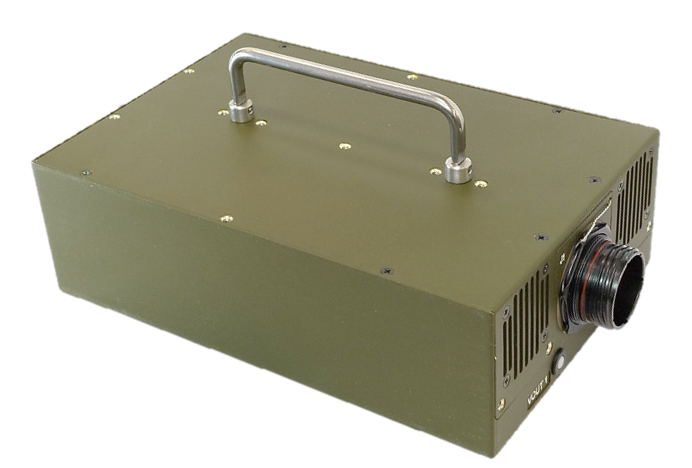

MK800 |
800W |
18-32VDC |
1) 30V, 2) 28V |
1) 20A, 2) 7A |
2 |
230mm X 155mm X 71mm
9.0551in X 6.1024in X 2.7953in | |
 |
MR150TR |
125 W |
16-70VDC |
1) 5V, 2) 15V, 3) -15V |
1) 7A, 2) 3A, 3) 3A |
3 |
115mm X 90mm X 15.5mm
4.5276in X 3.5433in X 0.6102in | |
 |

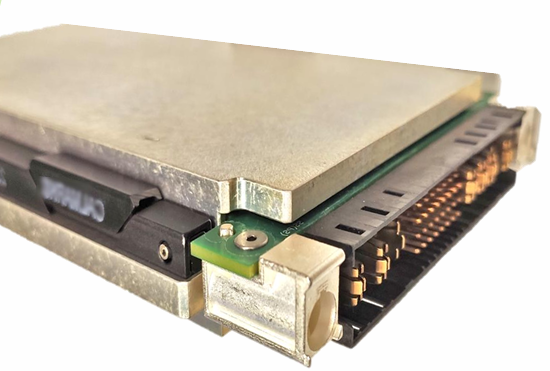

VITA 6U700 |
700W |
18-32VDC |
1) 12V, 2) 28V, 3) 3.3V, 4) 5V |
1) 42A, 2) 4A, 3) 5.4A, 4) 5A |
4 |
168.3mm X 28mm X 235.5mm
6.626in X 1.1024in X 9.2717in | |
 |
VITA300 |
300W |
16-32VDC |
1) 12V, 2) 3.3V |
1) 24A, 2) 5A |
2 |
168.52mm X 100mm X 24.62mm
6.6346in X 3.937in X 0.9693in | |
